MOULD VIBRATION TECHNOLOGY

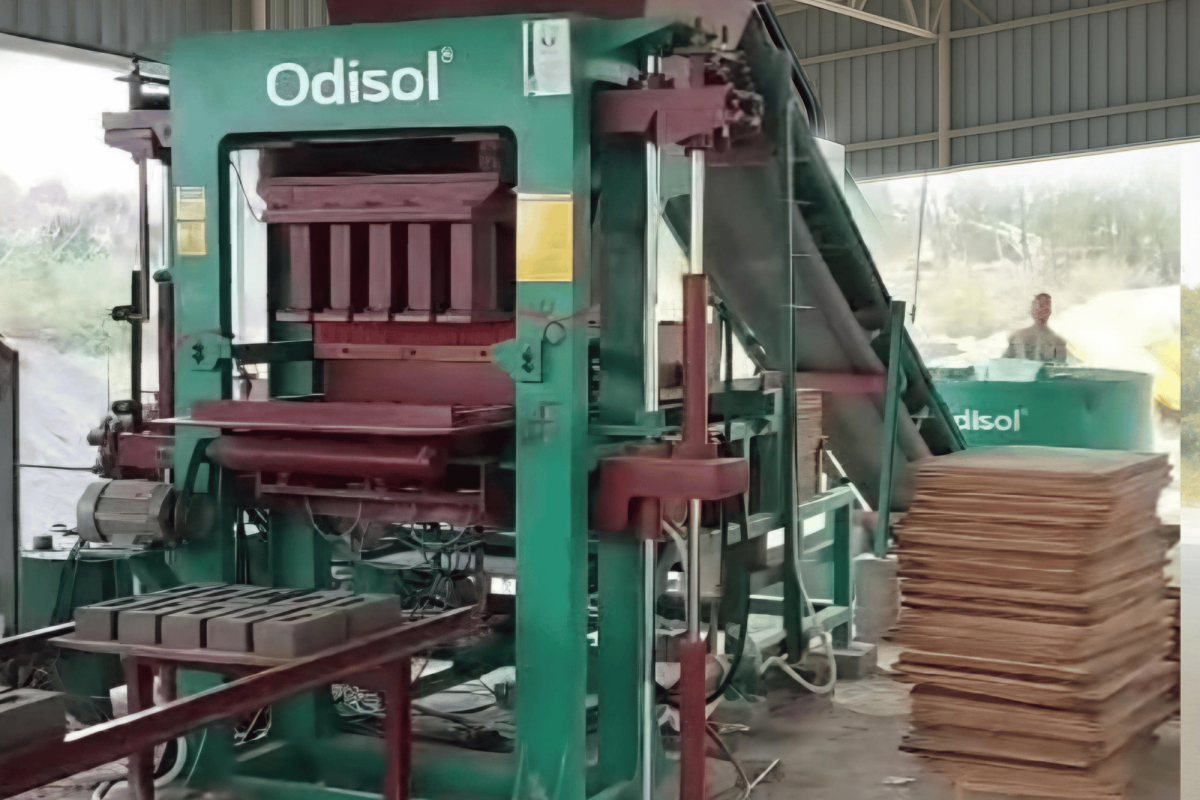

MOLD VIBRATION MACHINES
ODBM-06-MVT
| Dimension | |
| Weight | |
| Cycle Time | 15 Second |
| Production Capacity | |
| Hydraulic Powerpack Motor | 10 HP |
| Mixture Machine Motor | 10 HP |
| Working Pressure | 170 Bar max |
| Hydraulic Oil Tank Capacity | 200 Liter |
| Oil Cooler | YES |
| Prefill Arrangement | YES |
| Conveyor Belt | 2 HP, 500 mm Width |
| Agitator | Yes, Gear Type |
| No of Cylinder | 7 Nos |
| Panel Control | PLC |
| HMI Display | YES |
| PRE Fill Tank | YES |
| Pallet Dimension | |
| Die Liner | YES |
| Pan Mixer Capacity | 550 KG |
| Gear Box Type | WORM GEAR |
| Scrapper Type | Hardened |
| VIBRATOR MOTOR | 3HP,2NOS |
ODBM-08-MVT
| Dimension | |
| Weight | |
| Cycle Time | 15 Second |
| Production Capacity | |
| Hydraulic Powerpack Motor | 10 HP |
| Mixture Machine Motor | 15 HP |
| Working Pressure | 170 Bar max |
| Hydraulic Oil Tank Capacity | 200 Liter |
| Oil Cooler | YES |
| Prefill Arrangement | YES |
| Conveyor Belt | 2 HP, 500 mm Width |
| Agitator | Yes, Gear Type |
| No of Cylinder | 7 Nos |
| Panel Control | PLC |
| HMI Display | YES |
| PRE Fill Tank | YES |
| Pallet Dimension | |
| Die Liner | YES |
| Pan Mixer Capacity | 600 KG |
| Gear Box Type | WORM GEAR |
| Scrapper Type | Hardened |
| VIBRATOR MOTOR | 5HP,2NOS |
ODBM-10-MVT
| Dimension | |
| Weight | |
| Cycle Time | 15 Second |
| Production Capacity | |
| Hydraulic Powerpack Motor | 10 HP |
| Mixture Machine Motor | 15 HP |
| Working Pressure | 170 Bar max |
| Hydraulic Oil Tank Capacity | 400 Liter |
| Oil Cooler | YES |
| Prefill Arrangement | YES |
| Conveyor Belt | 2 HP, 500 mm Width |
| Agitator | Yes, Gear Type |
| No of Cylinder | 7 Nos |
| Panel Control | PLC |
| HMI Display | YES |
| PRE Fill Tank | YES |
| Pallet Dimension | |
| Die Liner | YES |
| Pan Mixer Capacity | 750 KG |
| Gear Box Type | WORM GEAR |
| Scrapper Type | Hardened |
| VIBRATOR MOTOR | 3HP,2NOS |
ODBM-12-MVT
| Dimension | |
| Weight | |
| Cycle Time | 15 Second |
| Production Capacity | |
| Hydraulic Powerpack Motor | 10 HP |
| Mixture Machine Motor | 20 HP |
| Working Pressure | 170 Bar max |
| Hydraulic Oil Tank Capacity | 200 Liter |
| Oil Cooler | YES |
| Prefill Arrangement | YES |
| Conveyor Belt | 2 HP, 500 mm Width |
| Agitator | Yes, Gear Type |
| No of Cylinder | 7 Nos |
| Panel Control | PLC |
| HMI Display | YES |
| PRE Fill Tank | YES |
| Pallet Dimension | |
| Die Liner | YES |
| Pan Mixer Capacity | 550 KG |
| Gear Box Type | WORM GEAR |
| Scrapper Type | Hardened |
| VIBRATOR MOTOR | 5HP,2NOS |
